Hangzhou Ting Ting Trading Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm lub tshuab txiav ntoo hauv Suav teb. Raws li peb muaj lub ntiaj teb no- cov cuab yeej tsim khoom thiab muaj peev xwm tsim muaj zog, peb zoo siab tos txais koj los yuav cov khoom siv zoo tshaj plaws wood edge banding tshuab los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

product-1381-401

Technical Specifications

Qauv	TT-306 IB
Min. Vaj Huam Sib Luag Ntev	120 hli
Min. Vaj Huam Sib Luag Dav	80 hli
Vaj Huam Sib Luag Thickness	10-45 hli
Ntug band Thickness	0.4-2 hli
Pub ceev	8m / min
Hauv - tso qhov voltage	380V yeem
Hauv - tso zaus	50Hz yeem
Kawg txiav lub cev muaj zog	0.37kw * 12000rpm
Fine Trimming lub cev muaj zog	2 * 0.35kw * 12000rpm
Tag Nrho Lub Zog	4.36 kwm
Cua Siab	0.5mpa ua
Zuag qhia tag nrho Dimension	1900x585x1410mm
Net nyhav	540kg ua

Ntsiab nta

Chav nkag

Yooj yim khiav thaiv thiab nkag tus pas ntsuas

Tswj Vaj Huam Sib Luag

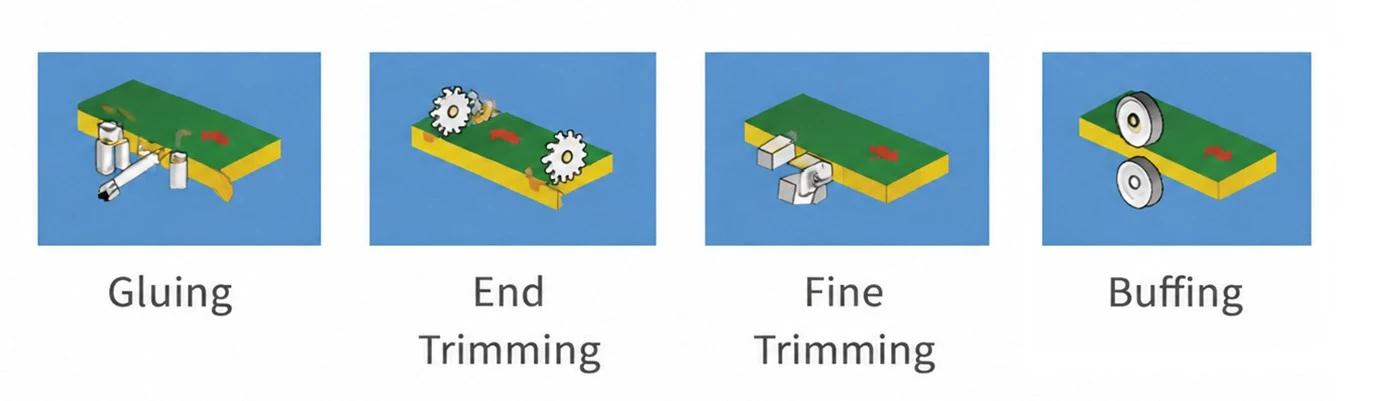

Gluing thiab daim kab xev txiav Unit

End Trimming Unit

ZooTrimming Unit

Buffing Unit thiab Flat Scrap Unit (Yeem)

Chav tsev tu (yeem)

Ua ntej- cua sov (yeem)

Gear Tsav Reducer

Hom Hluav Taws Xob thiab Pneumatic Accessories

product-1600-393

product-1858-463

Ntim thiab xa khoom

Txhua ntawm peb lub tshuab ua tiav kev sim nruj thiab kev ntim khoom ua ntej ua zaub mov xa tuaj kom muaj kev nyab xeeb kev thauj mus los. Peb feem ntau siv cov ntoo crates uas ruaj khov los yog cov hlau txuas ntxiv kom ntseeg tau tias cov tshuab muaj kev tiv thaiv tag nrho thaum lub sijhawm thauj hiav txwv thiab av. Peb kuj txhawb nqa ntau yam kev ntim ntim kev daws teeb meem thiab ntim ntim cov kev pabcuam kom tau raws li koj qhov kev xav tau sib txawv.

product-1008-909

Vim li cas thiaj xaiv TT-306DB

TT-306DB wood edge banding tshuab yog tsim los rau cov tuam txhab rooj tog saib xyuas kev ua tiav zoo thaum tswj xyuas kom muaj txiaj ntsig thiab ruaj khov txhua hnub. Nrog nws cov kev teeb tsa tsim nyog thiab kev ua tau zoo, lub tshuab muab cov kev daws teeb meem zoo tshaj plaws rau cov chaw tsim khoom kho dua tshiab los ntawm kev nkag - qib ntug banding cov cuab yeej.Nws cov qauv compact tsis tau muaj zog tso cai rau kev sib koom ua ke yooj yim rau hauv kev sib txawv rhiav layouts, thaum lub optimized mechanical design txo cov kev tu thiab txhawb kev tsim khoom mus sij hawm ntev.

Tsis tas li ntawd, lub tshuab tau tsim nrog ua tib zoo xaiv cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob kom ntseeg tau tias kev ua haujlwm ruaj khov thiab qis qis qis qis. Kev txhawb nqa los ntawm CE daim ntawv pov thawj thiab cov kws tshaj lij tom qab- kev pabcuam muag, TT-306DB muaj kev xaiv ua tau zoo thiab txhim khu kev qha rau koj cov lag luam txhawm rau nce kev tsim khoom thiab kev sib tw khoom.

FAQ

Q: Cov ntaub ntawv dab tsi tuaj yeem ua cov txheej txheem TT-306 thiab TT-308?

A: Cov cav tov yog tsim rau MDF, plywood, particle board, melamine board, thiab lwm yam ntoo -raws li panels feem ntau siv nyob rau hauv kev tsim rooj tog.

Q: Dab tsi ntawm ntug banding daim kab xev tau txais kev txhawb nqa?

A: TT-306 thiab TT-308 series tshuab txhawb nqa PVC, ABS, veneer, melamine, thiab acrylic ntug tapes nrog txawv thickness xaiv.

Q: Dab tsi yog qhov txawv ntawm TT-306 series thiab TT-308 series?

A: TT-306 series yog tsim los ua ib qho kev sib cog lus thiab tus nqi- siv tau zoo rau cov chaw tsim khoom me me thiab nruab nrab, thaum TT-308 series muaj kev xaiv ntau dua, kev tsim khoom sai dua, thiab kev ua haujlwm siab dua rau kev xav tau ntau dua.

Q: Cov tshuab puas yooj yim rau kev khiav lag luam?

A: Yog. Cov cav tov muaj cov neeg siv-cov kev tswj hwm tus phooj ywg thiab kev ua haujlwm yooj yim interfaces, tso cai rau cov tswv lag luam kom kawm sai sai rau kev teeb tsa lub tshuab thiab ua haujlwm txhua hnub.

Cim npe nrov: Tuam Tshoj ntoo ntug banding tshuab manufacturers, lwm tus neeg, Hoobkas
